RCJ-70 Bearing

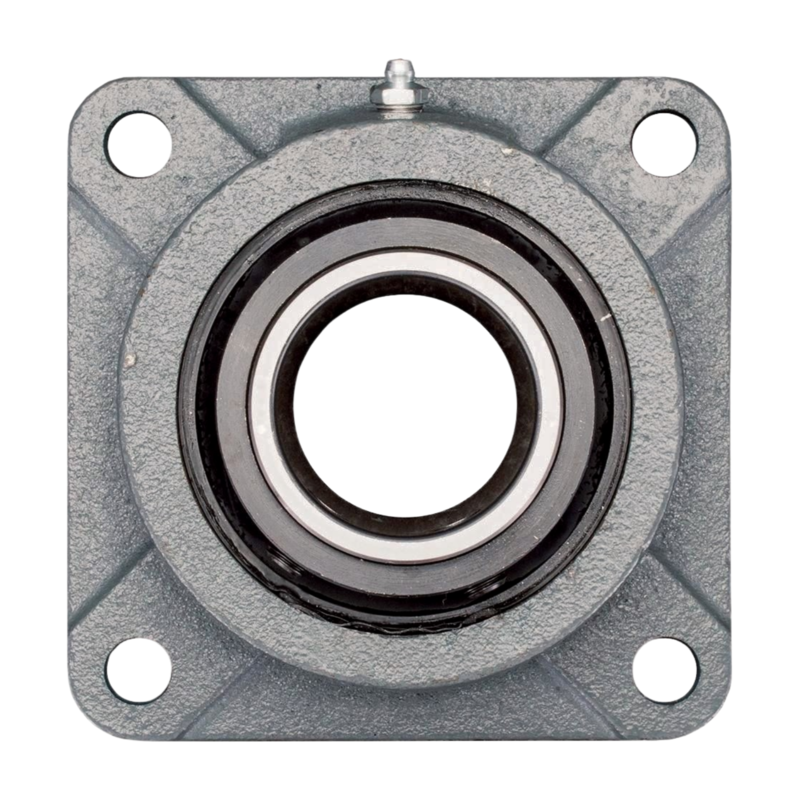

RCJ-70 Four-Bolt Flange Bearing
- For CH and CHSP Model Challenger Grinders
- Top Infeed Bearing
- Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar
$566.79
Choose Quantity
Product Details
Inside Diameter: 70mm
Style: RCJ
Bolt Hole Centers: 150mm
d | = | 70mm |
L | = | 188mm |
U | = | 82.5mm |
A | = | 52mm |
A1 | = | 18mm |
A2 | = | 38mm |
B1 | = | 66mm |
d3 max | = | 96mm |
J | = | 150mm |
N | = | 18mm |
Q | = | M6 |
V | = | 165mm |
Mass | = | 5.85 kg |
Designation of bearing | = | GE70-XL-KRR-B |
