RCJO-100 Bearing

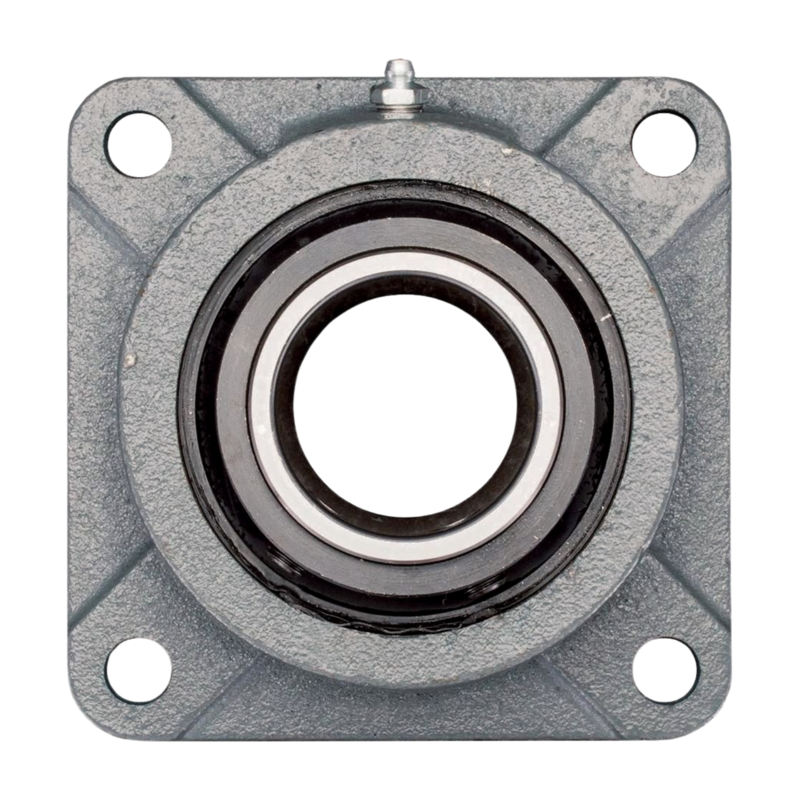

RCJO-100 Four-Bolt Flange Bearing
- For CG, CH and CHSP Model Challenger Grinders
- Main Rotor Bearing
- Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar
$1,242.15
Choose Quantity
Product Details
Inside Diameter: 100mm
Style: RCJO
Bolt Hole Centers: 242mm
d | 100mm |
L | 310mm |
U | 125mm |
A | 97mm |
A1 | 32mm |
A2 | 55mm |
B1 | 109.4mm |
d3 max | 145mm |
J | 242mm |
N | 32mm |
Q | M6 |
V | 268mm |
Designation of housing | CJO20 |
Designation of bearing | GNE100-XL-KRR-B |
