RCJO-70 Bearing

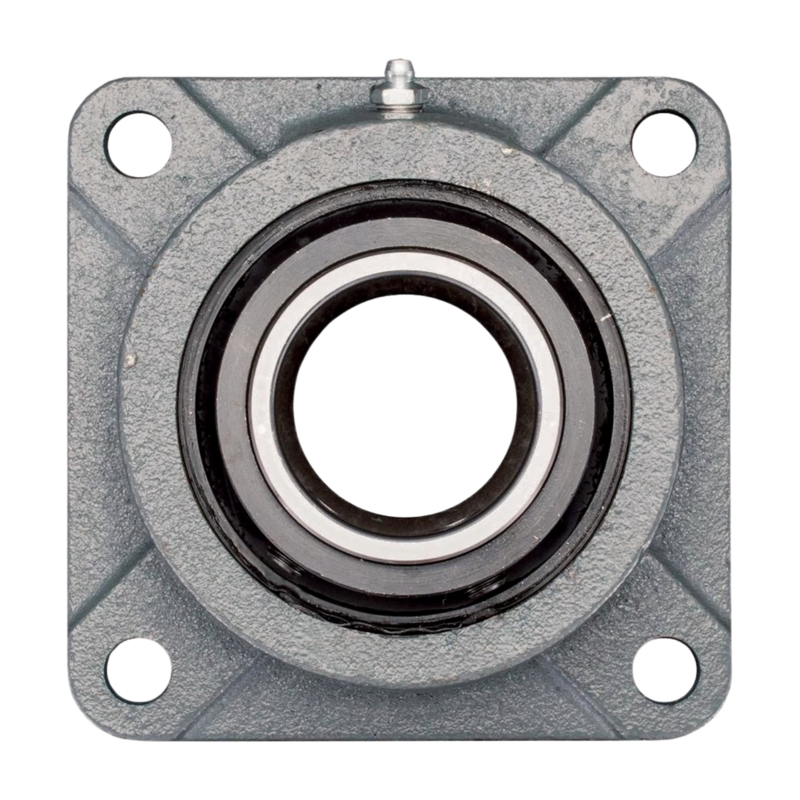

RCJO-70 Four-Bolt Flange Bearing
- For CH and CHSP Model Challenger Grinders
- Top Infeed Bearing
- Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar
$647.80
Choose Quantity
Product Details
Inside Diameter: 70mm
Style: RCJO
Bolt Hole Centers: 178mm
d | 70mm |
L | 226mm |
U | 85.4mm |
A | 54.5mm |
A1 | 25mm |
A2 | 36mm |
B1 | 75.5mm |
d3 max | 102mm |
J | 178mm |
N | 25mm |
Q | M6 |
V | 196mm |
Designation of housing | CJO14 |
Designation of bearing | GNE70-XL-KRR-B |
