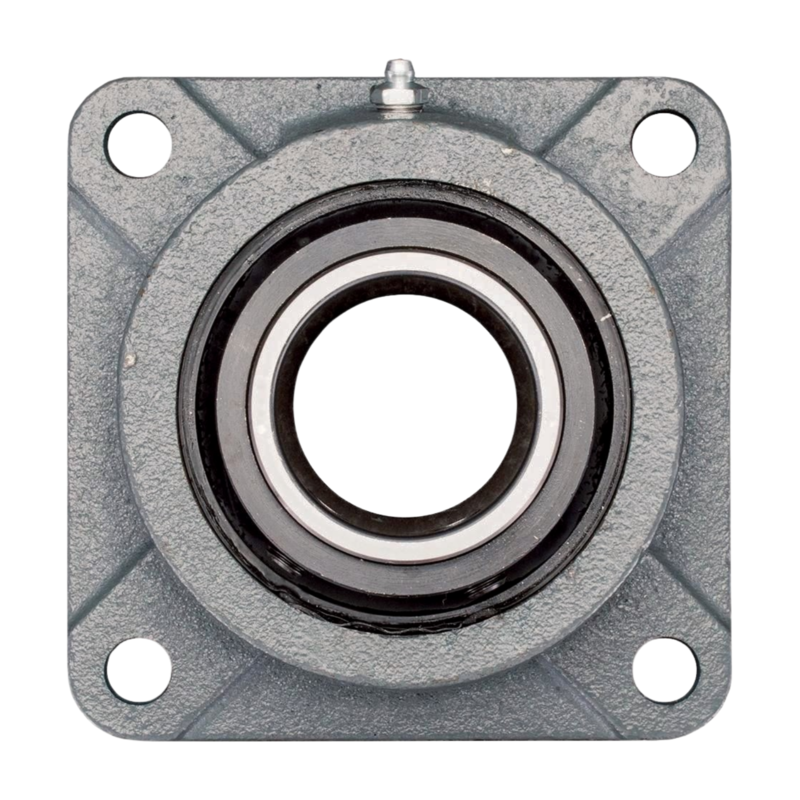

UCF210-32-T Bearing
UCF210-32 Four-Bolt Flange High-Temperature Bearing
- Supplied with a fully sealed bearing insert fitted in the housing
$65.87
Choose Quantity
Product Details
Inside Diameter: 50.8mm = 2 inch
Style: UCF
Bolt Hole Centers: 111mm
d | 2 inch |
a | 143mm |
e | 111mm |
i | 22mm |
g | 18mm |
L | 40mm |
S | 16mm |
Z | 54.6mm |
Bi | 51.6mm |
n | 19mm |
Bolt Size | 16mm |
Weight | 2.5 kg |
