UCF211-32-T Bearing

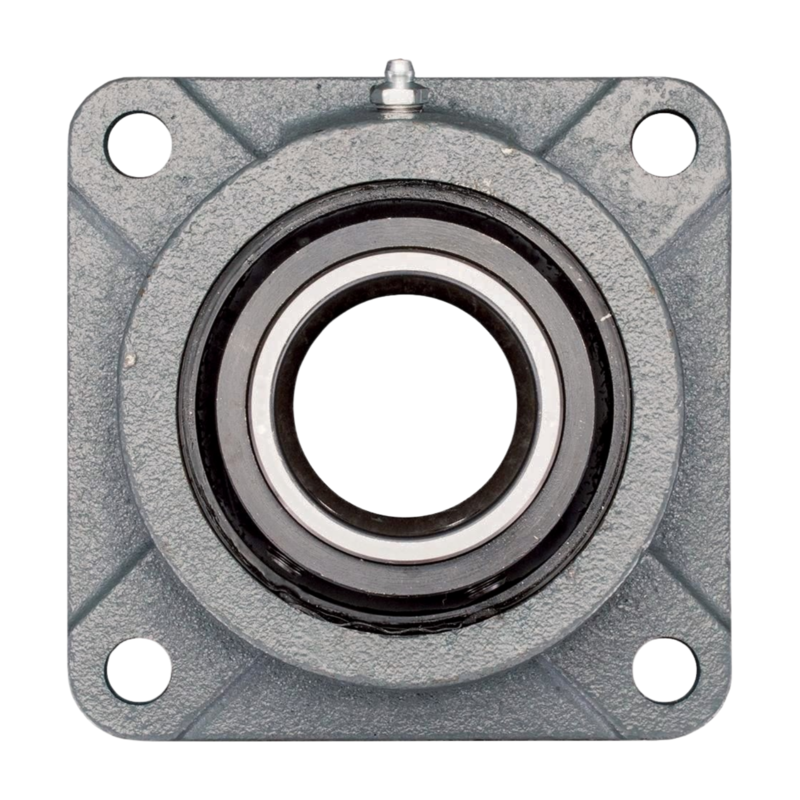

UCF211-32 Four-Bolt Flange High-Temperature Bearing
- Supplied with a fully sealed bearing insert fitted in the housing
$65.87
Choose Quantity
Product Details
Inside Diameter: 50.8mm = 2 inch
Style: UCF
Bolt Hole Centers: 130mm
d | 2 inch |
a | 162mm |
e | 130mm |
i | 25mm |
g | 20mm |
L | 43mm |
S | 19mm |
Z | 58.4mm |
Bi | 55.6mm |
n | 22.2mm |
Bolt Size | 16mm |
Weight | 3.4 kg |
