UCF214-70 Bearing

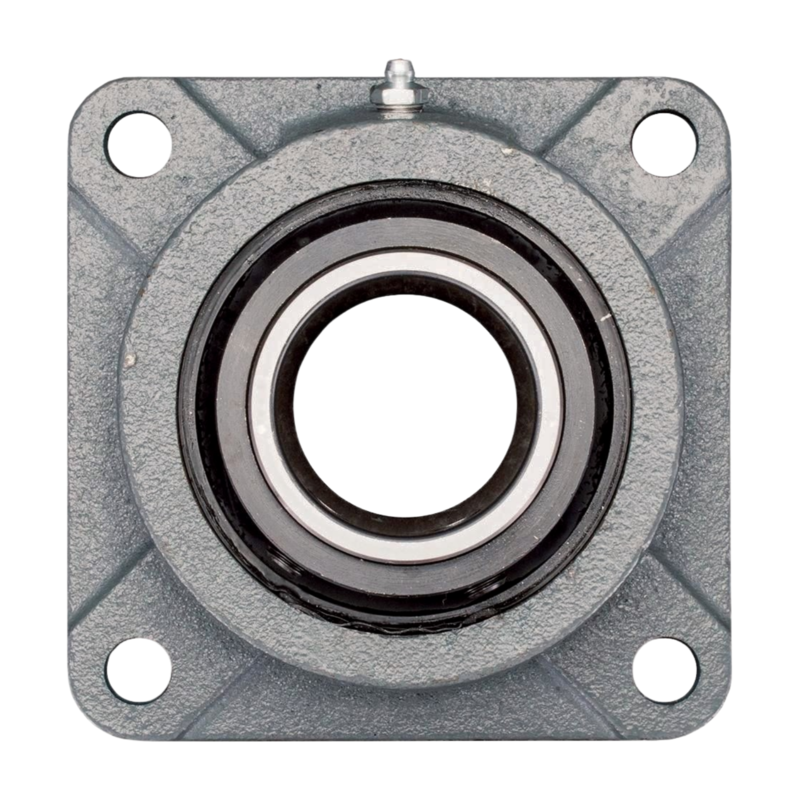

UCF214-70 Four-Bolt Flange Bearing
- For CH and CHSP Model Challenger Grinders
- Top Infeed Bearing
- Supplied with a fully sealed bearing insert fitted in the housing
$214.99
Choose Quantity
Product Details
- Shaft-Size (d) 70mm
- Length of Flange (a) 193mm
- Flange Height (b) 54mm
- Flange Thickness (c) 23mm
- Bolt Hole Pattern (e) 152mm
- (f) 31mm
- Bolt Hole Diameter (g) 19mm
- Length Thru Bore (l) 75.4mm
